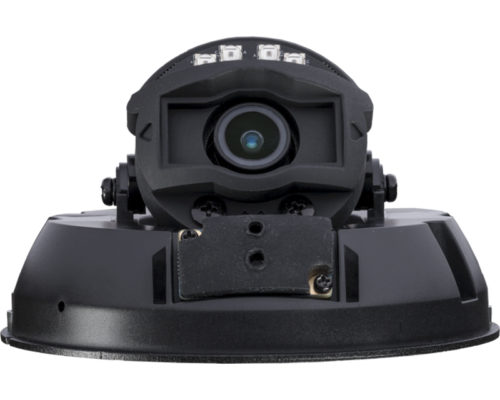

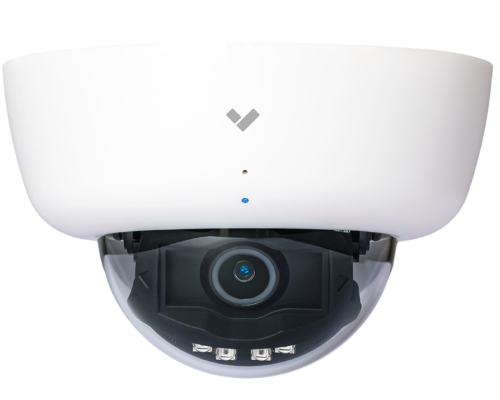

Verkada D40 Mini Dome Camera
1/2.7" Progressive CMOS Sensor and Built-in IR Illuminators

Features:

Modern, Secure Architecture

Verkada eliminates local servers and NVRs, resulting in a system architecture that is simpler, more secure, and easier to operate and manage. Open ports—which introduce security vulnerabilities in traditional camera systems—are also omitted from our system design. Out of the box, Verkada cameras are automatically self-firewalled. This safety layer prevents unauthenticated computers on the network from sending malware packets to the camera—even in the event that an attacker or virus is present on the same physical network.

Each camera communicates only via encrypted, outbound connections, underpinning an efficient and secure architecture. Video footage that’s stored on each camera is encrypted with public key infrastructure (PKI), which prevents unauthorized access—even in the unlikely event that the camera itself falls into the wrong hands.

Verkada software is developed by U.S.-based engineers. As part of our rigorous software development lifecycle, all firmware is cryptographically signed by Verkada to ensure that only authentic firmware can be loaded onto each camera.

Verkada works exclusively with datacenter operators that meet the highest industry standards for security and privacy, including ISO 27001, SSAE16/ISAE 3402 Type II: SOC 2, and SSAE16/ISAE 3402 Type II: SOC 3 certifications.

Optimal Video Retention—30 Days & Counting...

Verkada applies a tiered, differentiated approach to meet your organization’s video retention needs without hindering your local area network. Select data is securely uploaded and made readily accessible to authorized users within Command, Verkada’s secure web application. Full HD video footage is stored on the camera, which has enough storage for 30 days of continuous recording.

To maximize recording time, footage is automatically degraded to regular HD if meaningful activity is not detected. For customers with longer retention requirements, Verkada offers a number of options.

Unmatched Picture Quality—Even at Night

Verkada cameras record at 3 megapixels, providing 50% more detail than 1080p full HD. We also utilize a broad color gamut and wide dynamic range (WDR) to maximize clarity throughout the entire image.

Once connected, our cameras automatically tune image parameters: exposure, iris, shutter speed, brightness, contrast, saturation, sharpening, tint and temperature. These parameters are continually adjusted by Verkada’s algorithms, ensuring optimal image clarity. Each camera comes equipped with 8 infrared illuminators and a 1/2.8’’ Progressive CMOS sensor, a combination that enables unparalleled low-light camera performance—even in the dark of night.

Power Access Controls & Secure Remote Access

Command—Verkada’s secure web-based application—empowers administrators to easily and effectively manage access rights for their entire organization. Effortlessly restrict user access to an individual camera or location, and apply user roles to establish an access rights regime that fits your organization’s needs. Need to grant a new regional manager access to 5 office locations? Verkada makes it straightforward and painless.

Our software also makes it easy to securely share video footage with approved third parties, such as law enforcement and legal professionals. You can export footage or easily grant expiration-dated access by inviting these partners to your secure account. With Verkada, you can even remotely share a camera’s live feed in real time via SMS—a potentially life-saving feature during instances of active threats and prolonged security breaches.

Won't Kill Your Bandwidth

Compared to typical IP security cameras, which upload video footage continuously to the cloud, Verkada cameras have a reduced impact on the local area network. Result: Verkada cameras work even in areas where limited internet connectivity prevents cameras from other manufacturers from operating.

Verkada Bandwidth Use
Operating Mode	Uplink Usage	Notes
Steady state camera upload	50 kbit/s (regular) 20 kbit/s (low bandwidth mode)	Camera uploads only thumbnails and select metadata
View video stream from internet	300 kbit/s (low-res stream) 1000 kbit/s (high-res stream)	User can select low- or high-res stream within Command
View video stream from the LAN2	0 kbit/s	Coming soon

¹ Actual performance may vary; comparison is between network cameras streaming 100% of footage to the cloud to Verkada cameras with split-path hybrid approach between on-camera solid-state storage and cloud. Read Report »
² Contact Verkada Sales to learn more.
* Multiple simultaneous viewers do not increase local area network (LAN) bandwidth use from the camera — viewers securely access the video after it is proxied through Verkada Command’s cloud service.

Built Tough, With Backup For The Backup

Engineered with cutting-edge technology and industrial-grade materials, Verkada cameras are built to perform everywhere—and built to last. The D30 and D50 meet certification requirements for vandal resistance (IK08 and IK10, respectively); the D50 has an IP67 weatherproof rating. Uptime and reliability are ensured thanks to quality assurance (QA) alerts and tamper detection notifications, which are generated automatically by Verkada’s software.

To ensure the most secure and reliable deployments, Verkada includes redundant systems throughout each camera’s design. In the unlikely case that a scheduled automatic firmware update fails, for instance, two redundant firmware partitions ensure that the camera remains secure and operational. To enable optimal retention and an excellent user experience for administrators, Verkada cameras capture video at two different bitrates—high-definition for retention, and a bitrate optimized for speedier applications within Verkada Command. On-camera footage may optionally be fully backed up to encrypted cloud storage.

Finally, thanks to its on-camera storage, the Verkada camera will continue to record even in the event of a network outage. Paired with a continuous power solution, Verkada cameras will continue to reliably record even in the event of grid-power loss.

Video Analytics & Activity-Based Indexing

Thanks to cleverly designed activity-based indexing, Verkada’s software automatically scans footage and logs periods when activity occurred. Using the web interface, it’s easy to search a camera’s historical footage by selecting areas of interest within its frame. Verkada then automatically surfaces all footage where motion occurred in these areas of the grid. Find the clip you’re looking for and easily export and share. You can also use Verkada’s map- and text-based search features to quickly navigate multi-site deployments comprising many cameras.

Always Up To Date, Always Ahead

Say goodbye to legacy systems beset by outdated firmware and security vulnerabilities. Verkada cameras automatically receive software updates and upgrades. These updates—which include the latest security enhancements as well as new features and functionality—are made available to all Verkada software license holders via periodic scheduled maintenance windows.

Our secure, automated approach ensures seamless delivery of updates without interrupting camera operability. Result: it’s easy for administrators to stay ahead of emerging security threats while gaining access to all the latest features and industry-leading security camera capabilities.

Specifications:

D40 Mini Dome Camera Specifications
Image Sensor	1/2.7" Progressive CMOS
Maximum Resolution	2688 x 1944 (5MP)
Lens Type	Fixed
Focus	Fixed
Focal Length	f = 2.8mm
Aperture	F1.6
Iris	Fixed
Field of View	97° Horizontal 71° Vertical 128° Diagonal
Shutter Time	1/5 sec. to 1/16000 sec.
Day/Night	IR-cut filter for day & night function
IR Illuminators	15 meters in low light conditions
LED Indicator	System power and status indicator
Connectors	RJ-45 cable connector for Network/PoE connection
Power Input	IEEE 802.3af PoE
Power Consumption	6W

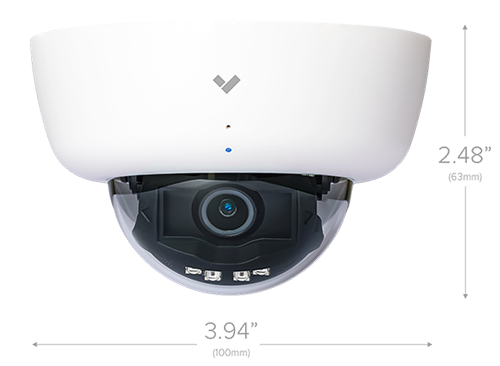

Dimensions	Diameter: 100mm / 3.94in Height: 63mm / 2.48in
Weight	284.6g / 10.0oz
Safety Certifications	IK08 vandal resistance, FCC, ICES, IEC62368
Operating Temperature	-10°C ~ 50°C (14°F~ 122°F)
Humidity	90%
Included Accessories	Setup guide, screw pack

Command Cloud Software:

Gain Powerful New Capabilities

View video on any device, get alerts when things aren't right — even send first responders a live camera feed via SMS.

Empowered End Users

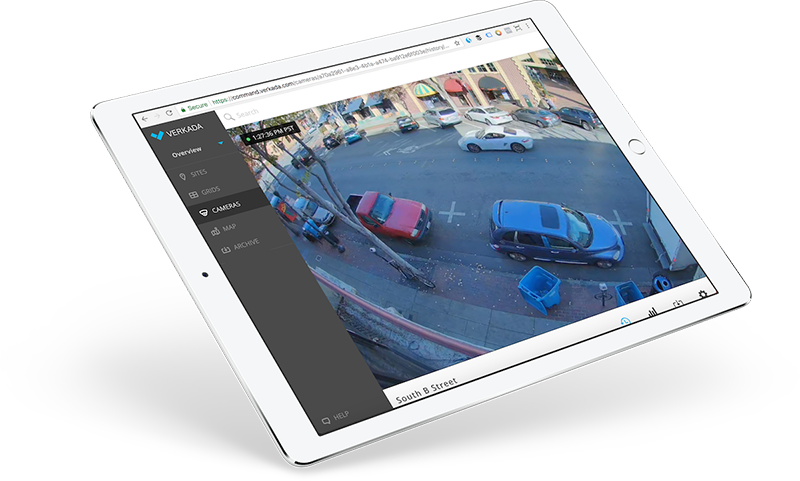

Command, Verkada’s secure web application, provides users with remote access to a centralized platform, making it easy to address situations virtually.

Limitless Availability

Gain secure, 24/7 access to live video feeds from your computer, tablet or mobile device. Retain up to 120 days of on-camera storage.

Command Platform

• Always on the go
  No 3rd party plugins, thick clients or downloads required. Easily monitor cameras across all platforms.
• Share Footage Instantly
  Reduce response time by sending links of live camera footage in a matter of seconds - via SMS or email.
• Find What You Need
  Quickly find the footage you need with time-/date- based search and motion-based indexing.

Features:

Views:

Documentation:

Download the Verkada Dseries Cloud Surveillance Product Overview Datasheet (.PDF)

Download the Verkada D40 Mini Dome Camera Datasheet (.PDF)
